DH LASER mold laser welding machine is a high-precision laser welding system specifically designed for welding and repairing molds. It uses a laser beam to melt and fuse metal parts, allowing for precise and controlled welding operations. This machine is ideal for repairing small defects or cracks in molds, as well as for joining metal parts together with minimal heat input and distortion.
The laser welding machine can be used to make modifications to molds, such as adding or removing features, adjusting dimensions, or optimizing the design. This allows for quick and efficient mold customization, reducing lead times and costs.The laser welding machine can be used for routine maintenance of molds, such as removing rust, polishing surfaces, or repairing small defects. This helps to extend the lifespan of the molds and ensure their optimal performance.The laser welding machine can also be utilized in the manufacturing process of molds, particularly for joining or assembling different mold components. It enables strong and precise welds, ensuring the integrity and durability of the molds.
Number | Name | Technical parameter |
1 | Interiorinput power | 12KW |
2 | Output power | 400W |
3 | Max single-pulse energy | 120J |
4 | Laser wave length | 1064nm |
5 | Light class size | 0.3--2.5mm |
6 | Capacity control | 10--350A |
7 | Pulse width regulation | 0.1--20ms |
8 | Frequency regulation | 1--50HZ |
9 | Work focal length | F=110mm |
10 | Working voltage | AC380V 50/60HZ |
11 | Attaching plug | European, American, and English standards (customizable) |
12 | language | China, Britain, South Korea and Russia (customizable) |
13 | CCD | The 720P is Optional |
14 | Monitor | 7 inches with crosshairs |
15 | Microscope | 10X |
16 | Package size and weight | 1340*780*1200mm 260KG |
1. Sufficient power is 200W/300W/400W/500W and energy is 80-150J
2.YAG laser model, suitable for welding and repairing all kinds of molds, with small thermal deformation.

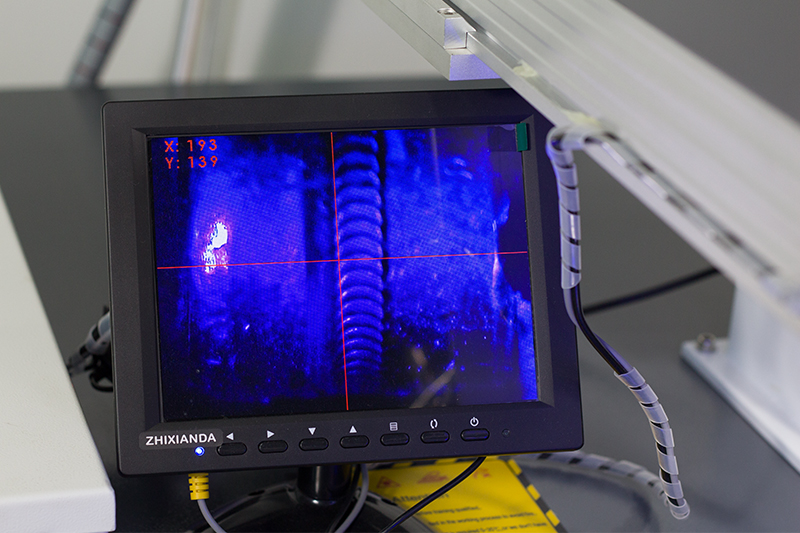

3.10X high-definition microscope and 720P CCD give customers different experiences.

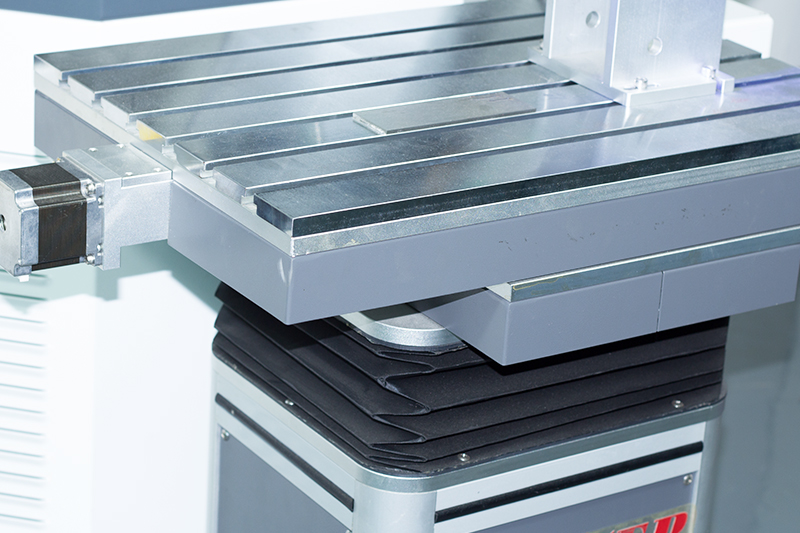

4.With large Z stroke control, suitable for repairing large molds.

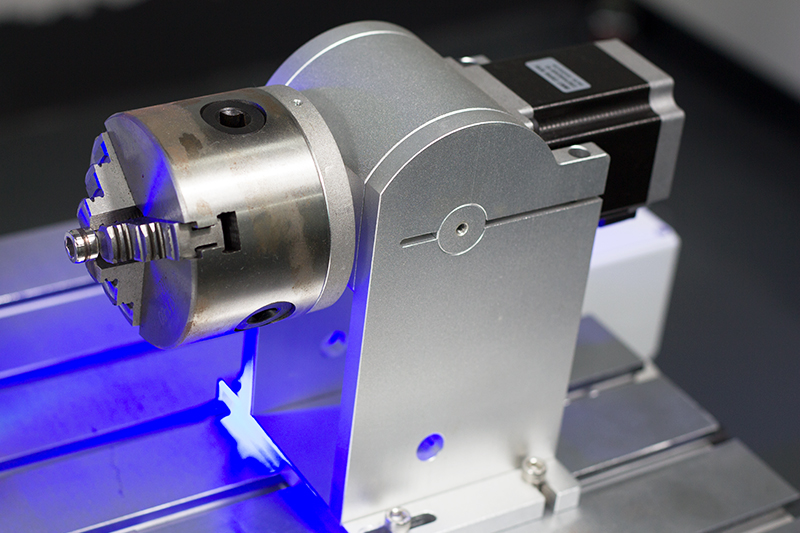

5. With rotating function, automatic welding and repairing of round products can be realized.
6.7-inch operation screen, easy to operate, compatible with 10 languages.
7. Fold the screen to facilitate observation and operation from different angles.
8. The welding head can be angled to facilitate the repair of different molds.
9. The console can bear 260KG, and it can be lifted and lowered electrically.
