  • Product Details

Number

Name

Technical parameter

1

model

DH-M400W

2

laser power

400W

3

laser wave length

1064nm

4

Laser type

YAG

5

Current regulation

10-350A

6

Pulse width regulation

0.1--20MS

7

Frequency regulation

1--100HZ

8

Manual work table travel trip

X125mm Y100mm

9

Manual workbench format

X350mm Y450mm

10

Electric cantilever stroke

X100mm Y100mm Z1000mm

11

Hanging arm beam

Length 1500mm   Height 1600mm

12

Rotation Angle of cantilever

360°

13

Drive way

57 Step in

14

control method

SCM

15

CCD

720P colored belt crosshairs

16

microscope

10X

17

Welding head

F=110mm

18

cooling-down method

Water-cooled 2P-integrated type

19

Weld selection

0.1---0.6mm

20

Light class diameter

0.5----3mm

21

Host power

12KW

22

Input voltage

AC380V ±10% / 50HZ

23

Size and weight

1080*760*1060mm  150KG
     1440*1200*1900mm  350KG


Product Features


1. The laser welding machine for the boom mold can rotate 360 degrees.

2. Welding in 12 directions, controlled by the movement of the operating rod, and automatic linear guide platform.

3. Especially suitable for welding and repairing large molds.

4. High-definition CCD and 10X microscope, more refined and accurate.

5. The welding speed can be controlled, which is suitable for various working environments.

6. Double foot switch control, more convenient.

7. The boom and the console are separated, which is more flexible and convenient.

8. YAG laser mode has little influence on mold heat.


Product Details

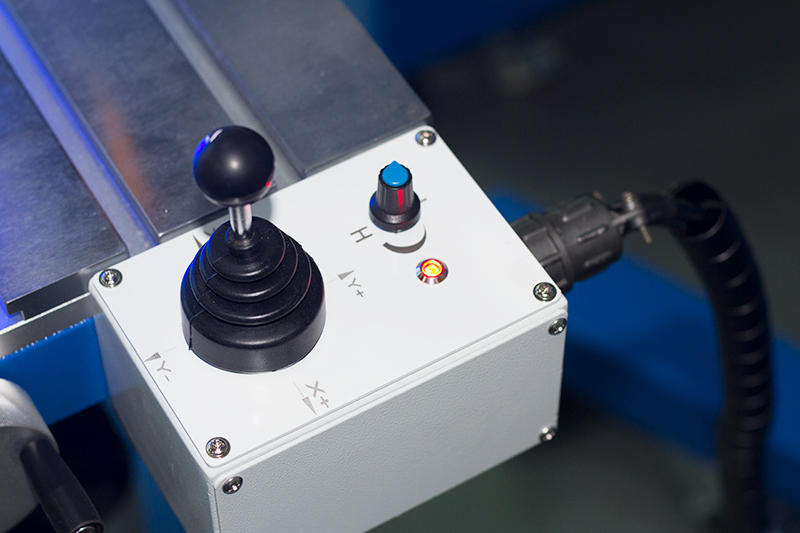

Special remote sensing control box, easy to operate, high accuracy.

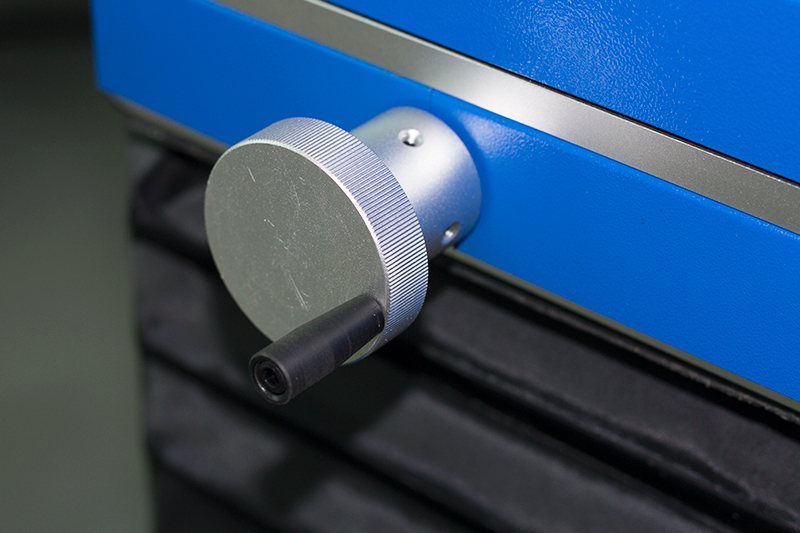

Manual fine-tuning workbench, precision 0.06mm, more convenient adjustment.

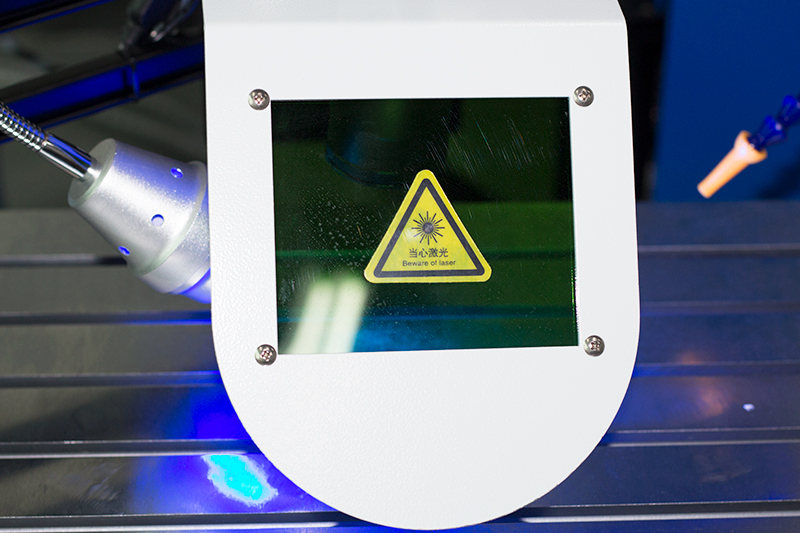

Special laser protection plate to better protect the eyes.

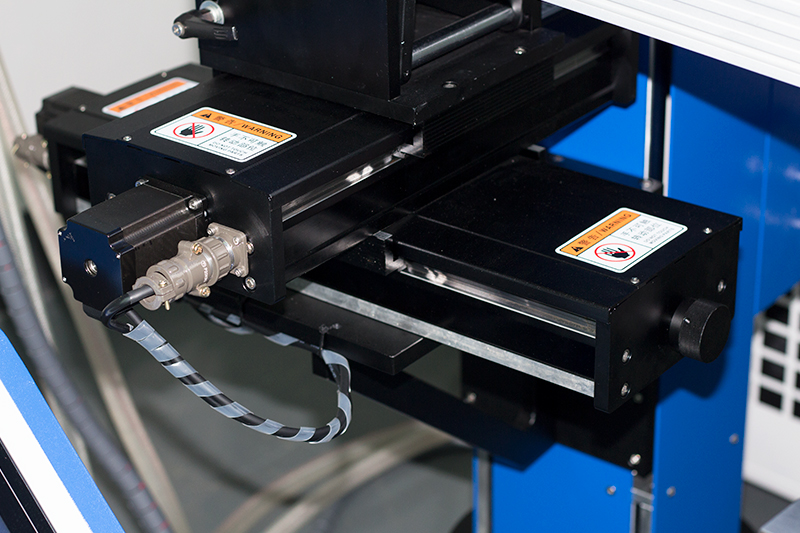

X and Y straight slide table with precision of 0.06mm, long life and high precision.

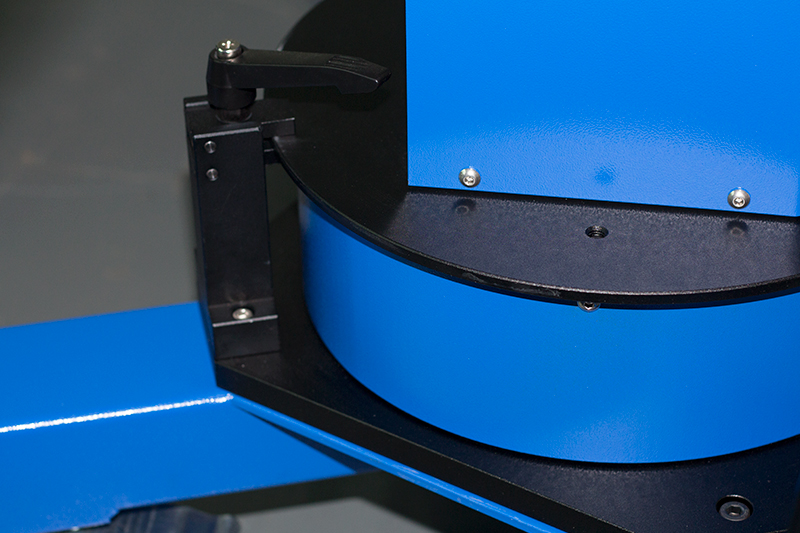

360 degrees of rotation structure, can be arbitrarily adjusted and fixed.

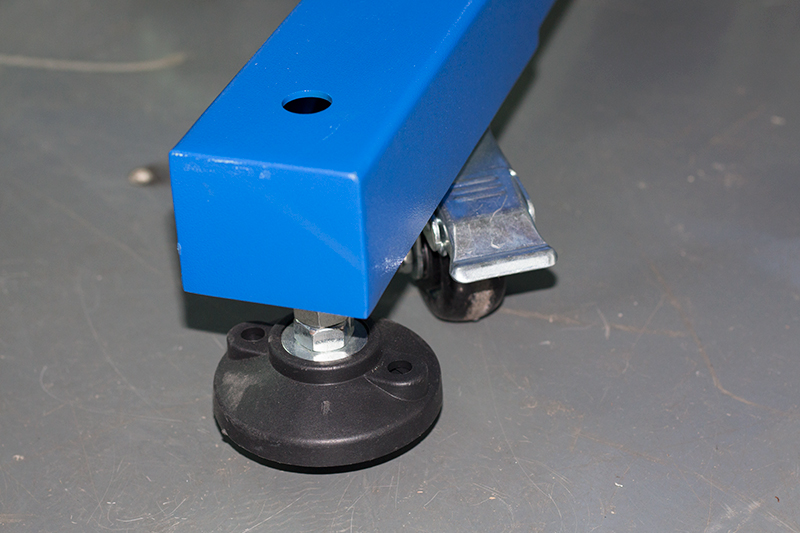

Special fixed foot pad and universal brake castwheel, more convenient handling, more stable.


Certificate Display



Faqs
  • Are you trading company or manufacturer?
    We are factory.Manufacturing for 15 years, Factory in China optical Valley Wuhan, Welcome to visit our factory!
  • How long is your delivery time?
    Generally it is 2days if the goods are in stock. Custom machines are shipped in 5-7 days.The factory has a long-term spot, sufficient inventory.
  • What is your terms of payment?
    30% T/T in advance ,balance before shipment.
  • I know nothing about this machine, what type of machine should I choose?
    We will help you choose the suitable machine and share you the solution; you can share us what material will you welding and the size & depth of welding.We have different models for you to choose from.
  • When I got this machine, but I don’t know how to use it. What should I do?
    We will send operation and manual video for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.
  • If some problems happen to this machine, what should I do?
    We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). We can deal with the problems through phone communication, video guidance,After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
  • What’s package, will it protect the products?
    We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
  • Can you accept customized services and OEM?
    Can be customized and OEM, we have a professional technology and research and development team, Can provide you with professional and customized services,for the majority of customers with a full range of technical solutions.
