200W Desktop Jewelry Laser Welding Machine

200W desktop jewelry laser welding machine, strong power 200W, energy 100J, automatic water adding function, a variety of abnormal alarm protection, 10X high definition microscope, can be selected with HD CCD, realize the perfect combination of microscope and CCD operation, can weld gold, sterling silver and other jewelry.

SEND INQUIRY NOW

Product Details

Number	Name	Technical parameter
1	Interiorinput power	3KW
2	Output power	200W
3	Max single-pulse energy	100J
4	Laser wave length	1064nm
5	Light class size	0.3--2.5mm
6	Capacity control	1--100%
7	Pulse width regulation	0.1--15ms
8	Frequency regulation	1--20HZ
9	Work focal length	F=110mm
10	Working voltage	AC220V 50/60HZ
11	Attaching plug	European, American, and English standards (customizable)
12	language	China, Britain, South Korea and Russia (customizable)
13	CCD	The 720P is Optional
14	Package size and weight	960600760mm 95KG

Product Details

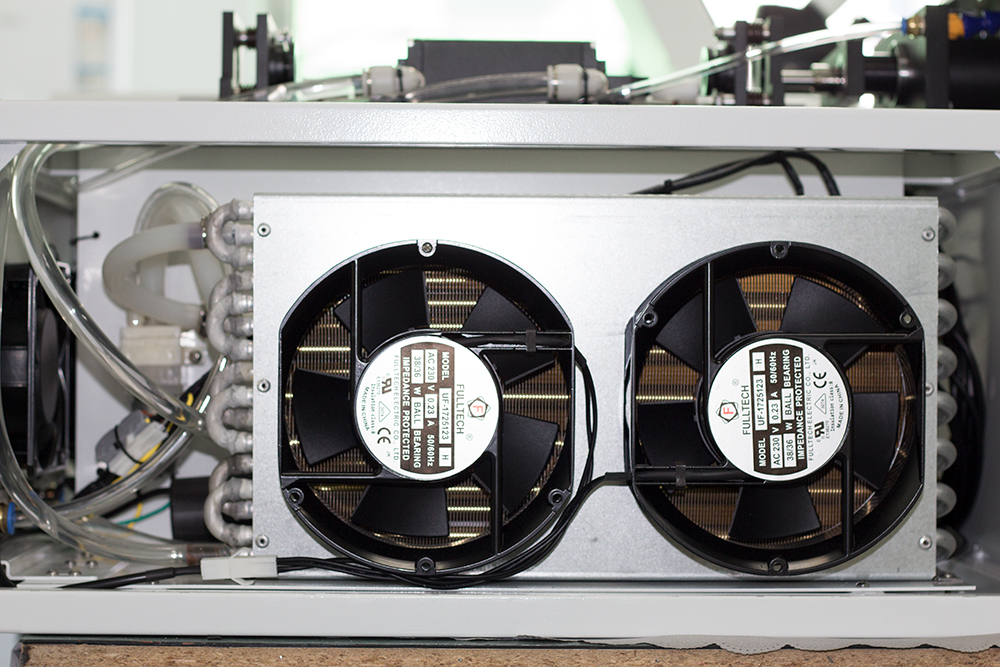

Cooling System

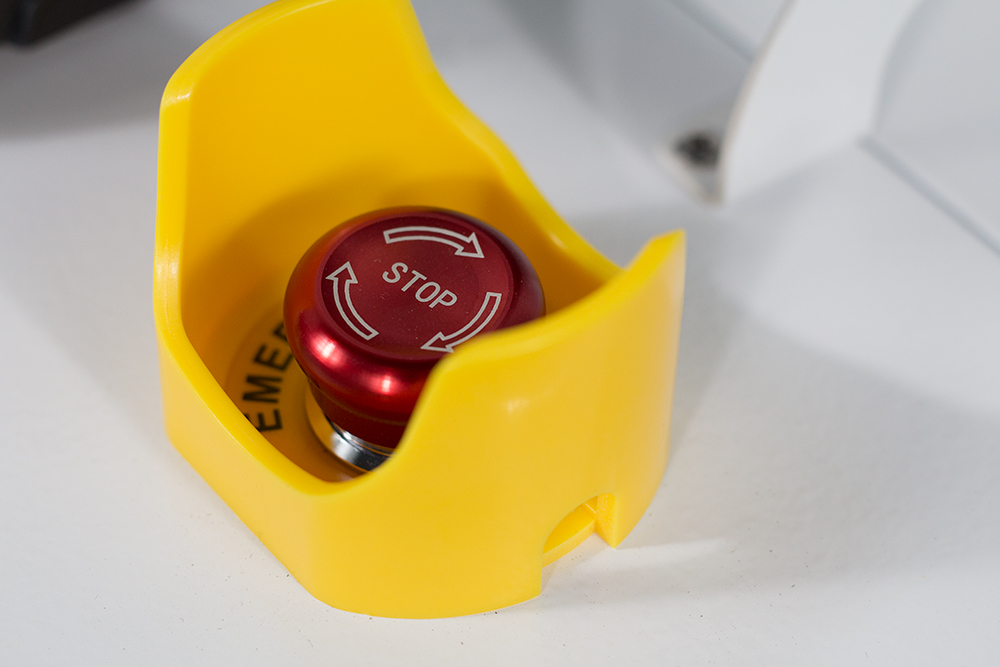

Emergency Stop Switch

Hd Ccd

Key Switch

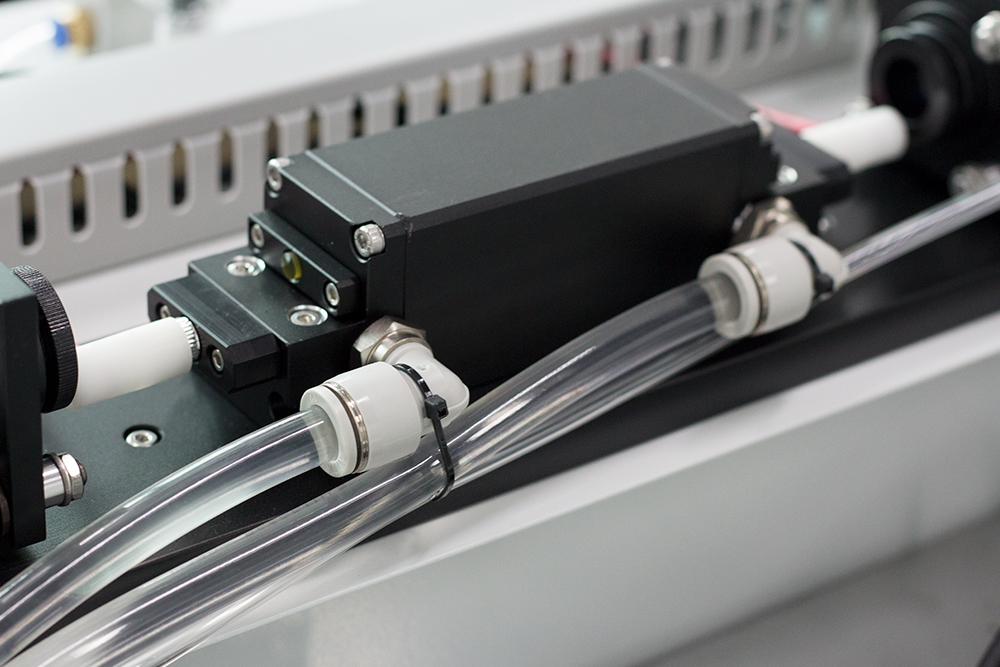

Laser Cavity

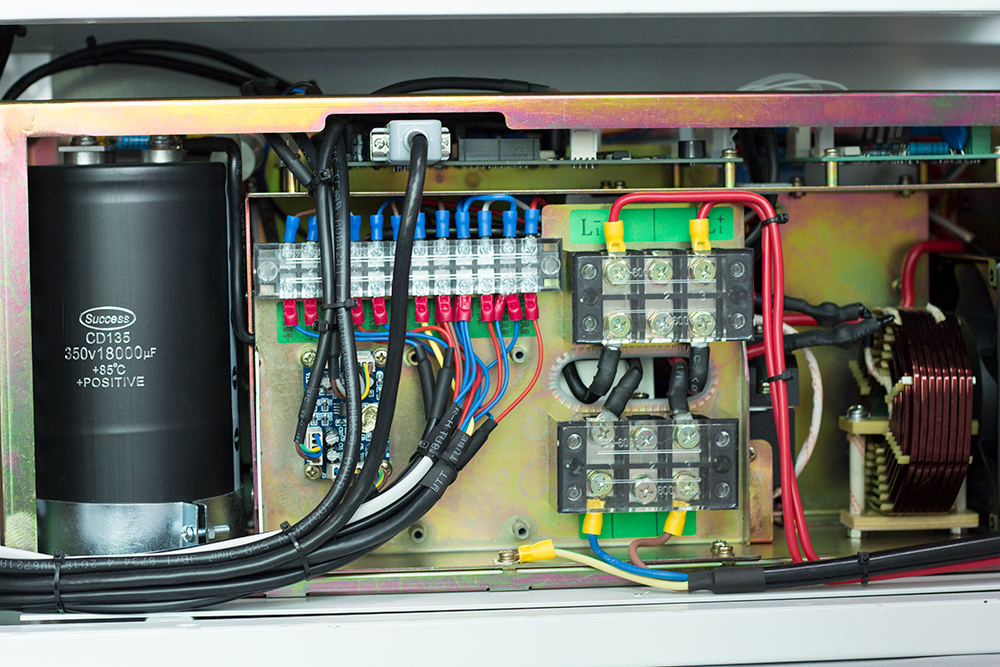

Laser Power Supply

Microscope

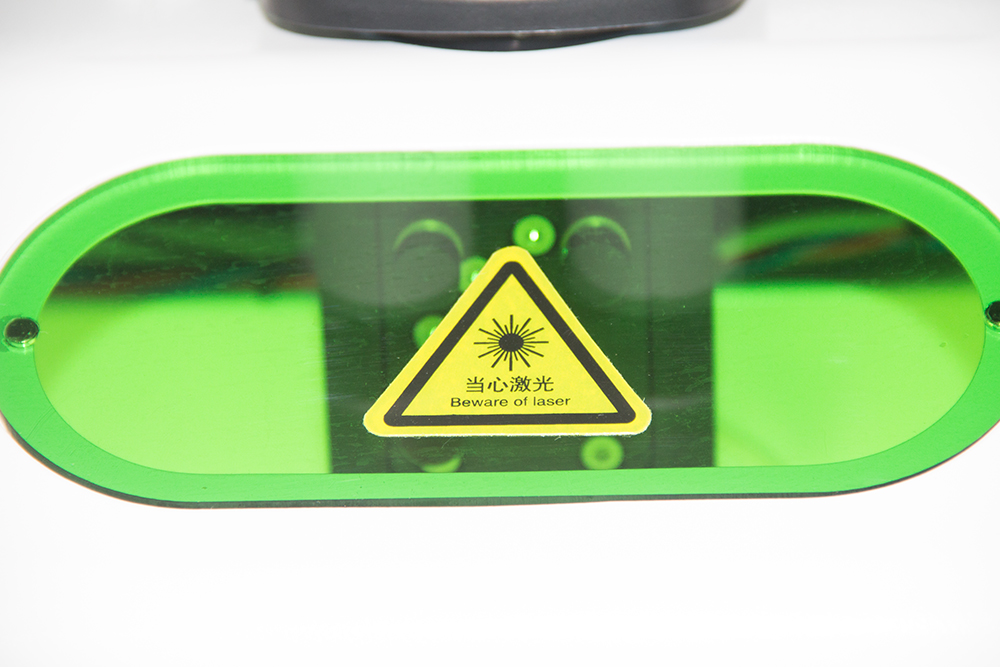

Observation Window

Faqs

What kind of certificate you have ?
We have ISO9001, ISO14001, PED, SGS, FDA, CE.
Do you accept OEM business?
Yes, we are OEM supplier.
What is the standard of package?
International environmental protection requirements, standard export wooden box.
What’s the delivery time?
Standard equipment for 2-5 days, non-standard equipment communication and negotiation.
If products have some quality problem, how would you deal with?
We will responsible for all the quality problems.
Can I get samples from your factory?
Yes, sample is free, but the express charge is yours.

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

100W Desktop Jewelry Laser Welding Machine

100W desktop jewelry laser welding machine, the volume is only the size of a microwave oven, weight 35 KG, full power 100W, energy 80J, equipped with HD CCD camera, circular arc appearance design, pure white corrugated paint, simple and durable, can weld gold, sterling silver and other jewelry products.
200W Integrated Jewelry Laser Welding Machine

DH LASER Professional research and development and production of various types of jewelry laser welding machines , Full power of 200W, floor integrated design, independent chiller, good heat dissipation performance, easy operation, equipped with high-definition CCD camera, can weld gold, sterling silver and other jewelry products.
200W Split Jewelry Laser Welding Machine

Jewelry laser welding machine, full power of 200W, independent chiller design, better heat dissipation effect, suitable for a variety of working environment, superior performance, 10X microscope, optional HD CCD camera, can weld gold, sterling silver and other jewelry products.
60W 100W 150W 200W Pulsed Laser

Pulse laser can be used for the chain weaving machine to weld the necklace, and also has a good application in the vibration scope laser welding machine, welding 3C electronic products, power battery electrode, high photoelectric conversion efficiency, low power consumption, no consumables, maintenance free.
