VR

Number

Name

Technical parameter

1

Interiorinput power

3KW

2

Output power

200W

3

Max single-pulse energy

100J

4

Laser wave length

1064nm

5

Light class size

0.3--2.5mm

6

Capacity control

1--100%

7

Pulse width regulation

0.1--15ms

8

Frequency regulation

1--20HZ

9

Work focal length

F=110mm

10

Working voltage

AC220V  50/60HZ

11

Attaching plug

European, American, and English standards (customizable)

12

language

China, Britain, South Korea and Russia (customizable)

13

CCD

The 720P is Optional

14

Monitor

8 inches with crosshairs

15

Microscope

10X

16

Package size and weight

940*580*730mm   95KG


Product Features


1. Sufficient power is 200W and energy is 100J.

2. automatic water adding function, various abnormal alarm protection.

3. 10X high-definition microscope.

4. Independent high-definition CCD can be installed, with 8-inch screen with reticle, so as to realize the perfect combination operation of microscope and CCD.

5. can weld gold, sterling silver and other jewelry.

6. 7inch operation screen, easy to operate, compatible with 10 languages.

7. Fold the screen to facilitate operation from different perspectives.

8. large fan cooling system, adapt to a variety of environments.

9. Accumulated production and sales of 10,000 units.


Product Details

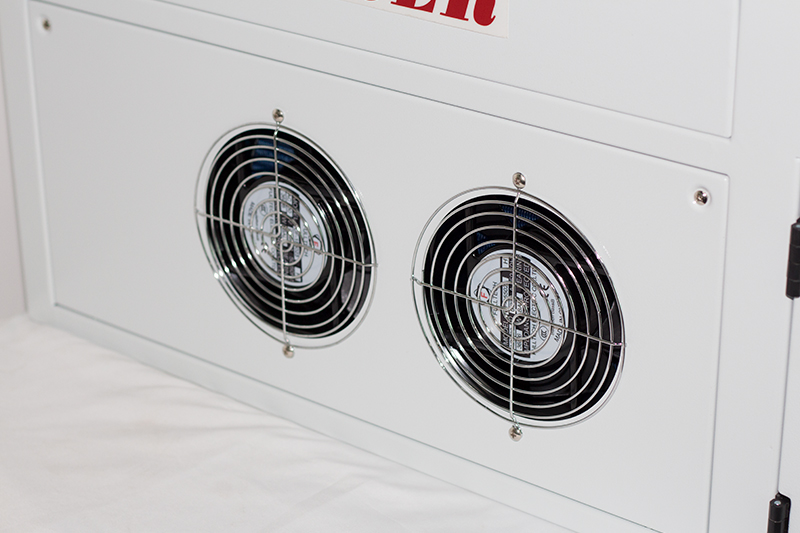

Pure copper motor heat dissipation system, long life, low noise, good heat dissipation.

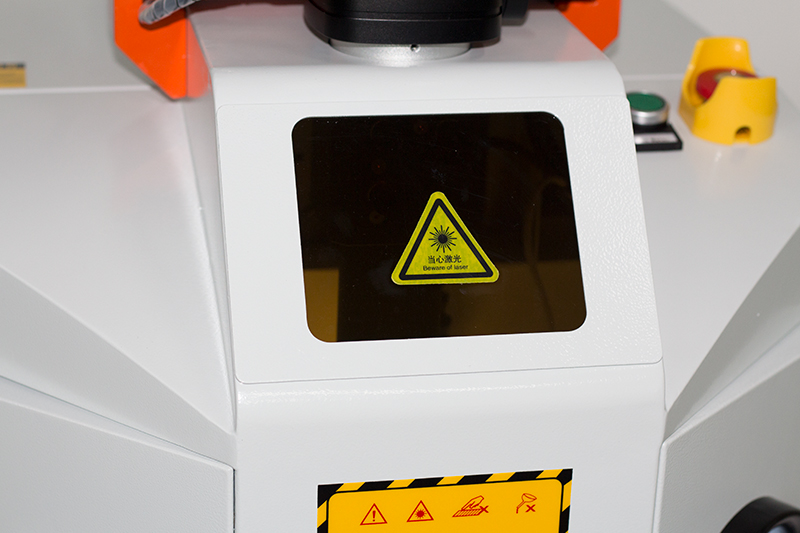

Large window observation plate, effectively prevent the laser to the eye stimulation.

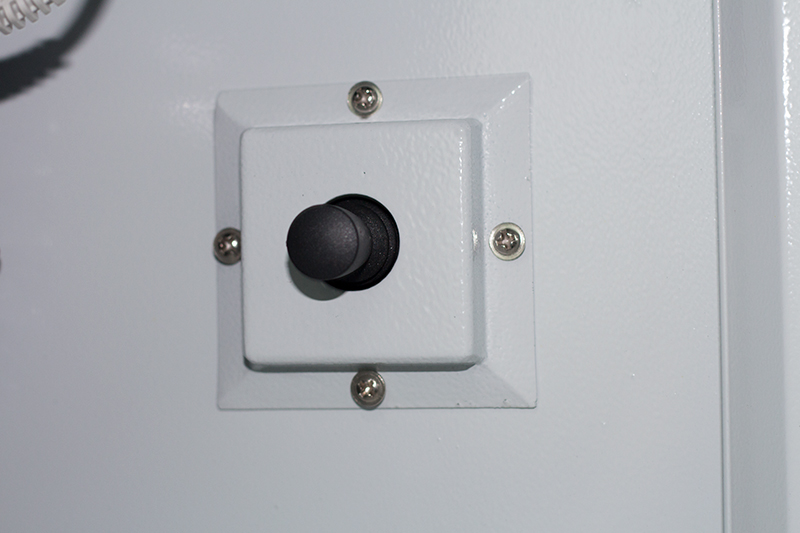

High-performance remote sensing, easy to adjust the parameters, high sensitivity.

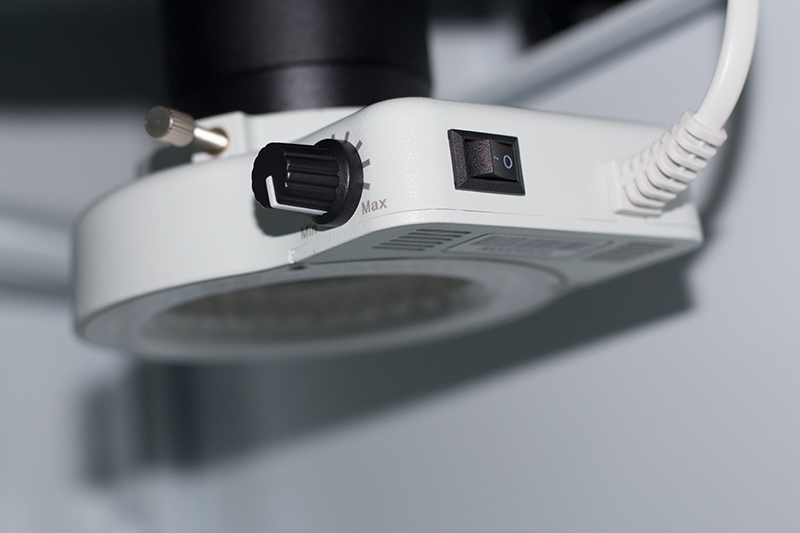

High-brightness LED lamp, with a long service life.

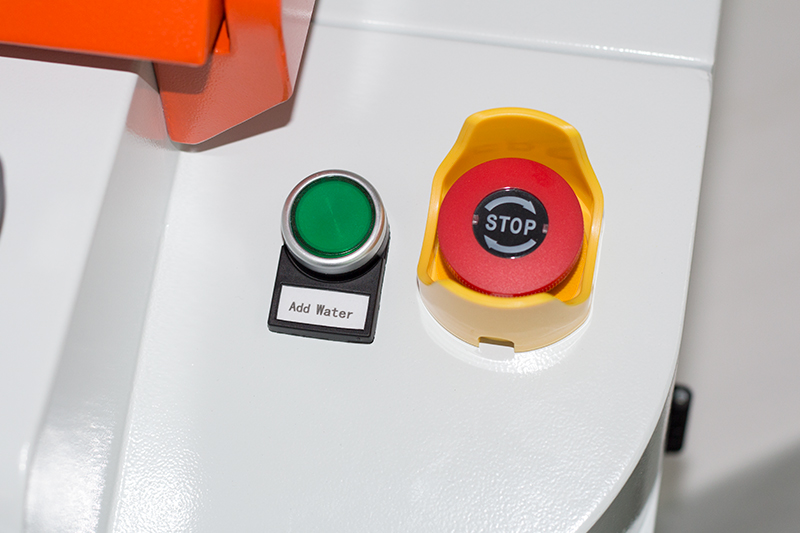

Anti-touch emergency stop protection cover, effectively prevent accidental touch.


Certificate Display



Faqs
  • Are you trading company or manufacturer?
    We are factory.Manufacturing for 15 years, Factory in China optical Valley Wuhan, Welcome to visit our factory!
  • How long is your delivery time?
    Generally it is 2days if the goods are in stock. Custom machines are shipped in 5-7 days.The factory has a long-term spot, sufficient inventory.
  • What is your terms of payment?
    30% T/T in advance ,balance before shipment.
  • I know nothing about this machine, what type of machine should I choose?
    We will help you choose the suitable machine and share you the solution; you can share us what material will you welding and the size & depth of welding.We have different models for you to choose from.
  • When I got this machine, but I don’t know how to use it. What should I do?
    We will send operation and manual video for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.
  • If some problems happen to this machine, what should I do?
    We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). We can deal with the problems through phone communication, video guidance,After the warranty, we still provide whole lifetime service. So any doubts,just let us know, we will give you solutions.
  • What’s package, will it protect the products?
    We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
  • Can you accept customized services and OEM?
    Can be customized and OEM, we have a professional technology and research and development team, Can provide you with professional and customized services,for the majority of customers with a full range of technical solutions.
