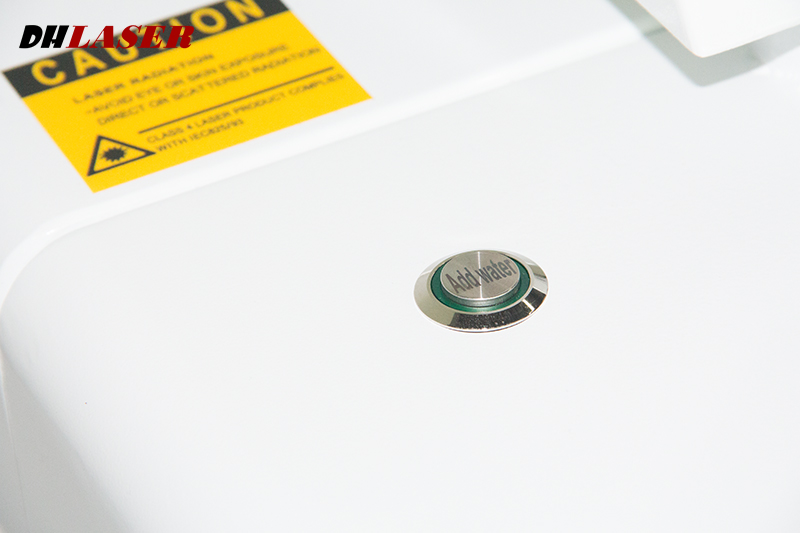

200W desktop jewelry laser welding machine, strong power 200W, energy 100J, automatic water function, a variety of abnormal alarm protection, 10X high definition microscope, independent HD CCD, with cross 8 inch screen, realize the perfect combination of microscope and CCD operation, reduce glasses fatigue, can weld gold, sterling silver and other jewelry.
Number | Name | Technical parameter |
1 | Interiorinput power | 3KW |
2 | Output power | 200W |
3 | Max single-pulse energy | 100J |
4 | Laser wave length | 1064nm |
5 | Light class size | 0.3--2.5mm |
6 | Capacity control | 1--100% |
7 | Pulse width regulation | 0.1--15ms |
8 | Frequency regulation | 1--20HZ |
9 | Work focal length | F=110mm |
10 | Working voltage | AC220V 50/60HZ |
11 | Attaching plug | European, American, and English standards (customizable) |
12 | language | China, Britain, South Korea and Russia (customizable) |
13 | CCD | The 720P is Optional |

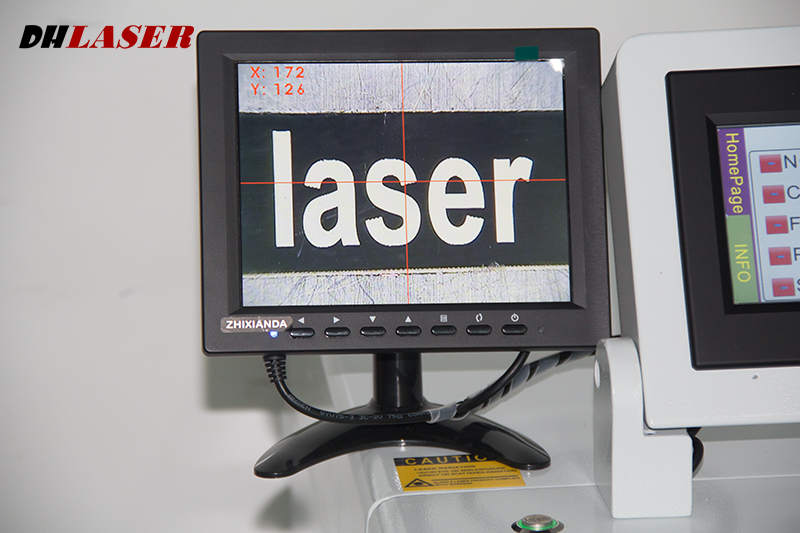

14 | Monitor | 8 inches with crosshairs |
15 | Microscope | 10X |
16 | Package size and weight | 940*580*730mm 85KG |
