DH Laser offers a 200W desktop jewelry laser welding machine. This machine is specifically designed for precise and efficient welding of jewelry pieces. With its 200W power output, it provides high energy density and fast welding speed.The desktop design makes it suitable for small-scale jewelry manufacturers and workshops. It has a compact and ergonomic design, taking up minimal space in your workspace. Additionally, it is easy to operate and does not require extensive training to use.
The DH Laser jewelry welding machine is equipped with advanced laser technology that ensures precise and clean welding results. It allows for spot welding, seam welding, and even 3D welding on various precious metals and alloys used in jewelry making, such as gold, silver, platinum, and titanium.
Number | Name | Technical parameter |
1 | Interiorinput power | 3KW |
2 | Output power | 200W |
3 | Max single-pulse energy | 100J |
4 | Laser wave length | 1064nm |
5 | Light class size | 0.3--2.5mm |
6 | Capacity control | 1--100% |
7 | Pulse width regulation | 0.1--15ms |
8 | Frequency regulation | 1--20HZ |
9 | Work focal length | F=110mm |
10 | Working voltage | AC220V 50/60HZ |
11 | Attaching plug | European, American, and English standards (customizable) |
12 | language | China, Britain, South Korea and Russia (customizable) |
13 | CCD | The 720P is Optional |
14 | Monitor | 8 inches with crosshairs |
15 | Microscope | 10X |
16 | Package size and weight | 940*580*730mm 85KG |
1. Sufficient power is 200W and energy is 100J.
2. automatic water adding function, various abnormal alarm protection.
3. 10X high-definition microscope.
4. Independent high-definition CCD can be installed, with 8-inch screen with reticle, so as to realize the perfect combination operation of microscope and CCD.
5. can weld gold, sterling silver and other jewelry.
6. 7inch operation screen, easy to operate, compatible with 10 languages.
7. Fold the screen to facilitate operation from different perspectives.

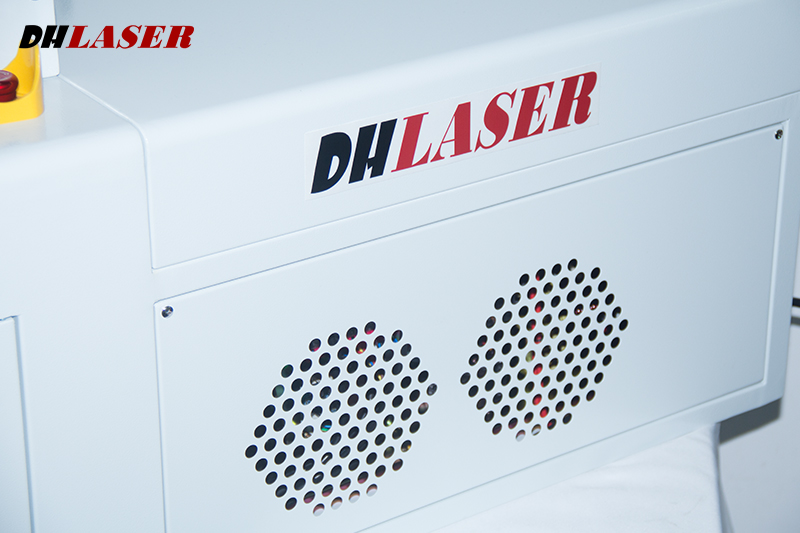

8. large fan cooling system, adapt to a variety of environments.
9. Accumulated production and sales of 10,000 units.
