Automatic laser welding machine

Automatic integrated laser welding machine, precision wire rod bench, error accuracy 10 wire, special welding software, teaching programming, CAD import, hand control, convenient and fast, high-definition CCD, can be expanded to 6 axis, to meet a variety of welding needs. DH LASER Research and development of manufacturing, each type of laser welding machine, to provide customers with a full set of application solutions.

SEND INQUIRY NOW

Product Details

Number	Name	Technical Parameter
1	Interiorinput power	5KW
2	Output power	1000W（1500W/2000W/3000W choosable）
3	Laser wave length	1080nm
4	Laser	MAX/JPT/RAYCUS
5	Repeat frequency rate	1--5000KHZ
6	Welding light class	1--5mm
7	Capacity control	10---100%
8	Welding focal length	F=200mm
9	Output power stability	≤3%
10	Table stroke	X=500Y=300Z=500mm
11	Rotation axis	80mm
12	Scavenger system	Coaxial and paraxial
13	Language	China, America (customizable)
14	CCD	720P
15	Working voltage	AC220V±10% 50HZ
16	Package size and weight	Main engine：122014201950mm 700KG Chiller：470610800mm 45KG

Product Details

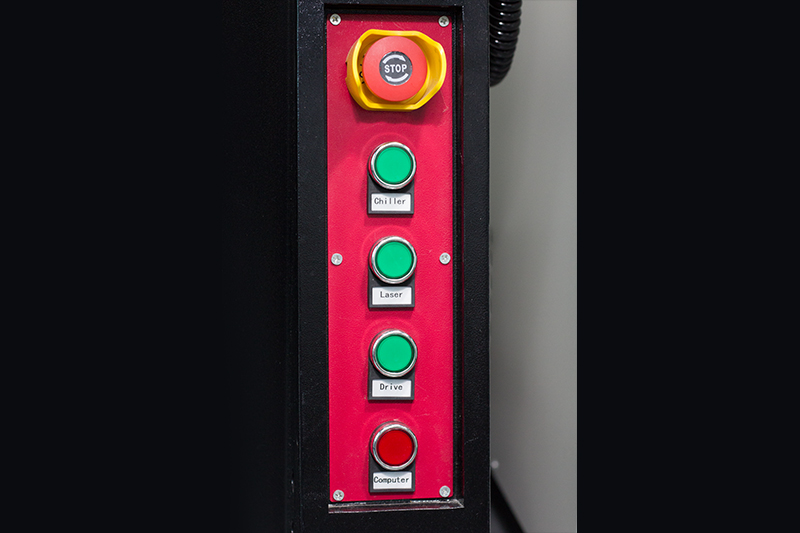

Button

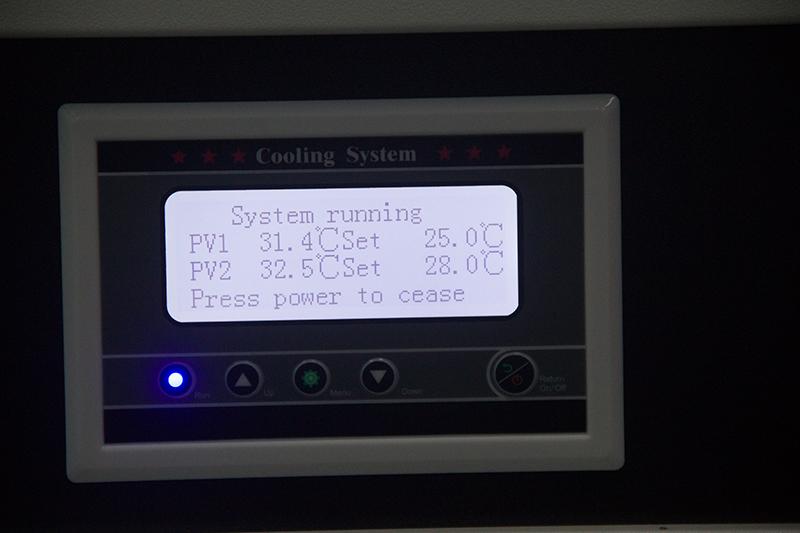

Chiller

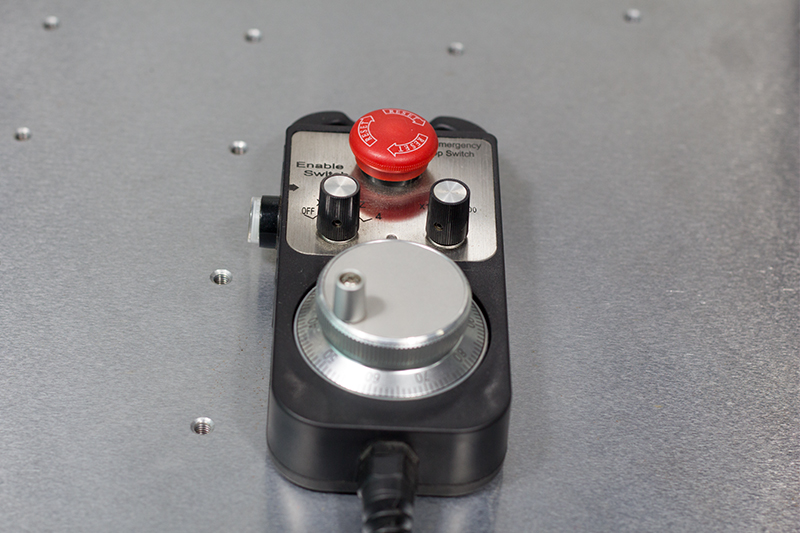

Handle

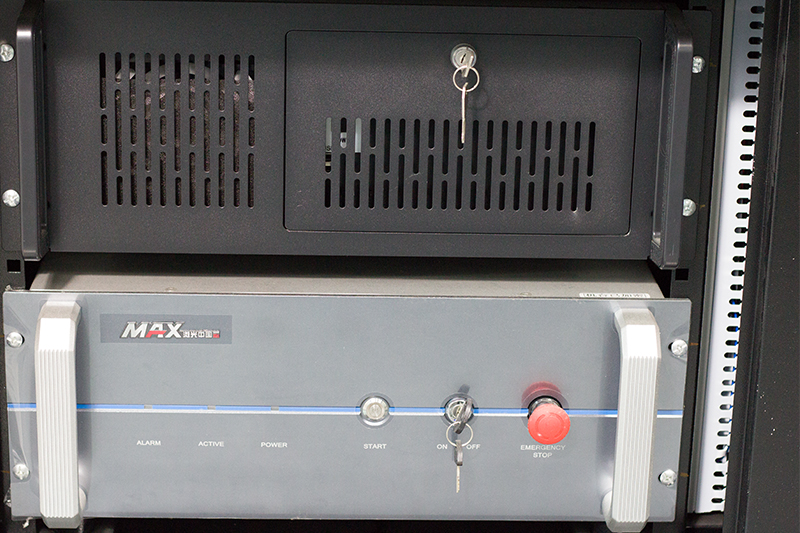

Laser

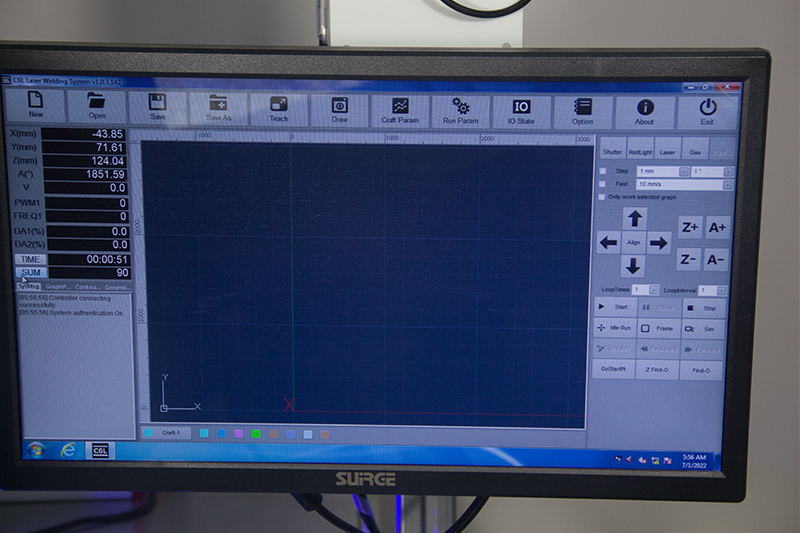

Operating Software

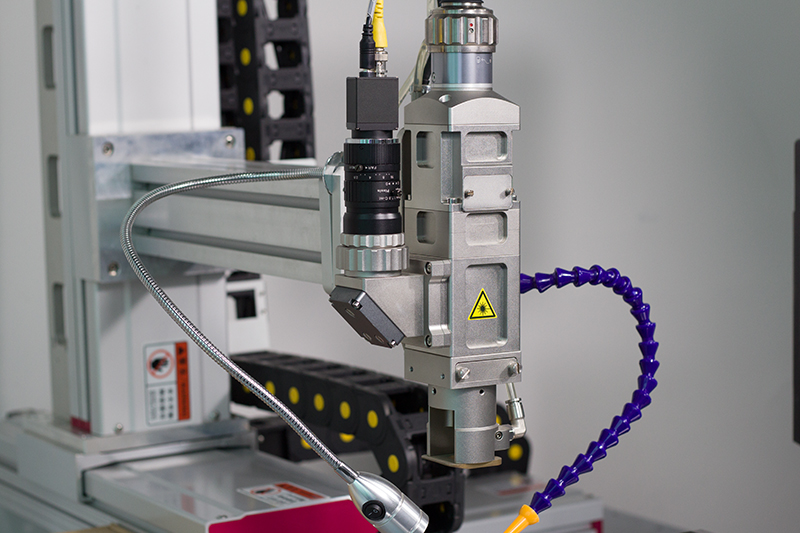

Welding Head

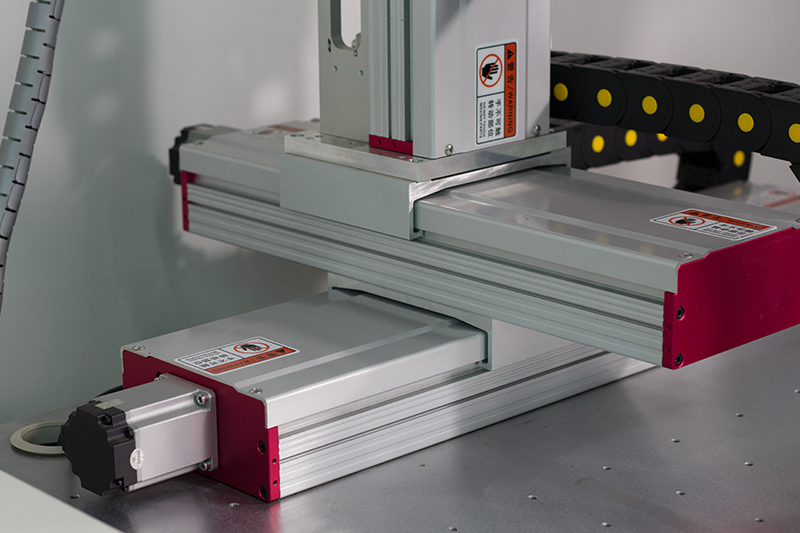

Workbench

Faqs

What kind of certificate you have ?
We have ISO9001, ISO14001, PED, SGS, FDA, CE.
Do you accept OEM business?
Yes, we are OEM supplier.
What is the standard of package?
International environmental protection requirements, standard export wooden box.
What’s the delivery time?
Standard equipment for 2-5 days, non-standard equipment communication and negotiation.
If products have some quality problem, how would you deal with?
We will responsible for all the quality problems.
Can I get samples from your factory?
Yes, sample is free, but the express charge is yours.

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Best Automatic Laser Welding Machine Factory Price - DH LASER

2000W fiber automatic laser welding machine is a high-power welding machine that utilizes a fiber optic laser source. It is capable of delivering a power output of 2000 watts, making it suitable for a wide range of welding applicationsThe machine features an automatic welding system, which means it can perform welding operations without the need for manual intervention. This improves efficiency and reduces the possibility of human error. With its high-power output and automatic capabilities, it is ideal for tasks that require precision and speed.Fiber optic laser source provides a high-quality laser beam that can be focused to a small spot size, enabling precise and efficient welding. The machine is also equipped with advanced features such as real-time monitoring and control, which ensures optimal welding parameters and consistent results.Additionally, the machine may include features such as a touch screen interface for easy operation, a built-in cooling system to prevent overheating, and a safety system to protect the operator.
100W Desktop Jewelry Laser Welding Machine

100W desktop jewelry laser welding machine, the volume is only the size of a microwave oven, weight 35 KG, full power 100W, energy 80J, equipped with HD CCD camera, circular arc appearance design, pure white corrugated paint, simple and durable, can weld gold, sterling silver and other jewelry products.
200W Desktop Jewelry Laser Welding Machine

200W desktop jewelry laser welding machine, strong power 200W, energy 100J, automatic water adding function, a variety of abnormal alarm protection, 10X high definition microscope, can be selected with HD CCD, realize the perfect combination of microscope and CCD operation, can weld gold, sterling silver and other jewelry.
200W Integrated Jewelry Laser Welding Machine

DH LASER Professional research and development and production of various types of jewelry laser welding machines , Full power of 200W, floor integrated design, independent chiller, good heat dissipation performance, easy operation, equipped with high-definition CCD camera, can weld gold, sterling silver and other jewelry products.
