DH LASER is a manufacturer based in China that specializes in laser cleaning machines. These machines utilize advanced laser technology to effectively clean surfaces by removing contaminants such as rust, paint, dust, and other unwanted materials without damaging the underlying substrate.
Laser cleaning is increasingly popular due to its eco-friendly nature, as it typically requires no chemicals and produces minimal waste. DH LASER's products are often used in various industries, including automotive, aerospace, manufacturing, and conservation, where precision cleaning is essential.
Number | Name | Technical parameter |
1 | Machine model | DH-C300W |
2 | Output power | 300W |
3 | Laser Source brand | JPT/GZ |
| 4 | Maximum pulse energy | 15MJ |
5 | Laser wave length | 1080nm |
6 | Fiber optical length | 5M |
7 | Capacity control | 1--100% |
8 | Laser cleaning frequency | 1--3000KHZ |
| 9 | Pulse width | 13--500ns |
10 | Cleaning width | 1--100mm |
11 | Cleaning distance | F=200mm |
12 | Working voltage | AC110-220V 50/60HZ |
13 | Attaching plug | European, American, and English standards (customizable) |
14 | Language | China, Britain, South Korea and Russia (customizable) |
15 | Continue working time | 16hours |
16 | Working temperature | -10---40°C |
| 17 | Power Consumptio | ≤ 1KW |
| 18 | Cooling-down method | Air |
19 | Net weight | 20KG |
20 | Package size and weight | 490*210*480mm 38KG |
Product Features
1. The machine shell is made of metal sheet metal by laser cutting, welding and polishing, which is suitable for a variety of harsh working environments and has a beautiful and durable appearance.
2, the whole body metal paint, flat bright surface, bright color, high temperature resistance, corrosion resistance, impact resistance and rubbing resistance, waterproof and oil-proof.
3, metal key start switch and metal power interface, long service life, sensitive response, good contact conductivity, using some harsh working environment.
4. The optical fiber protective sleeve is made of confidential fiber, which is fireproof, waterproof and corrosion-resistant, thus effectively protecting the optical fiber from long-term use in various harsh environments.
5. The laser is made of JPT, a well-known brand in China, with uniform optical mode and stable light output energy. It is designed with flat top light, high energy density of 5MJ and low power consumption for air cooling.
6. The control system adopts high-sensitivity capacitive touch screen, which has fast response speed, 9 kinds of cleaning modes, such as straight line, circle, petal, solid circle filling, horizontal and vertical scanning, etc., and 20 national languages. The interface operation is simple and easy to adjust, and the laser power, frequency, pulse width, graphic size, cleaning speed and reaction time can be adjusted.
7. The weight of the cleaning head is 500g, and the double swing X/Y imported copper wire motor, the lens is made of silicon wafer high temperature Shi Ying material, which does not heat or deform, and the fixed bracket is distributed, which is more convenient for cleaning operation.

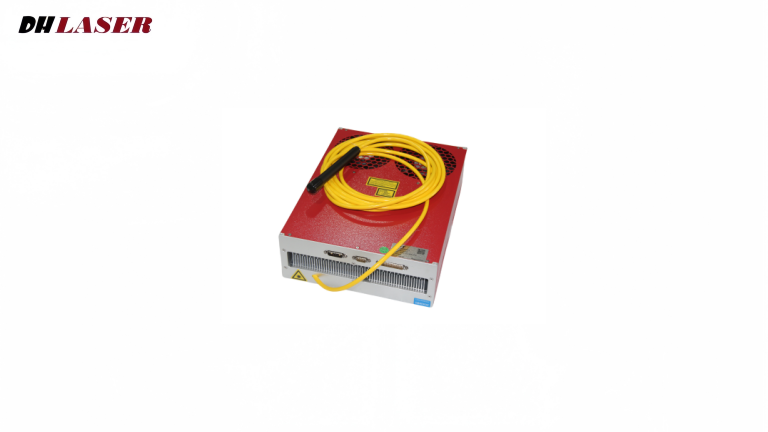

1、Pulse fiber laser source 300W
China famous brand laser adopts MOPA flat-topped light design, with stable output energy and uniform optical mode.

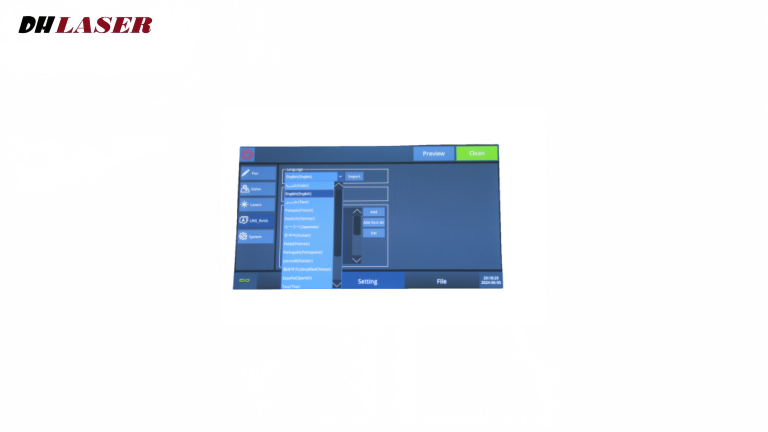

2、Control system
Using 7-inch capacitive touch screen and the principle of single chip microcomputer, the laser power, laser frequency, pulse width, cleaning width, filling angle and spacing, 9 cleaning modes and 20 languages can be adjusted.

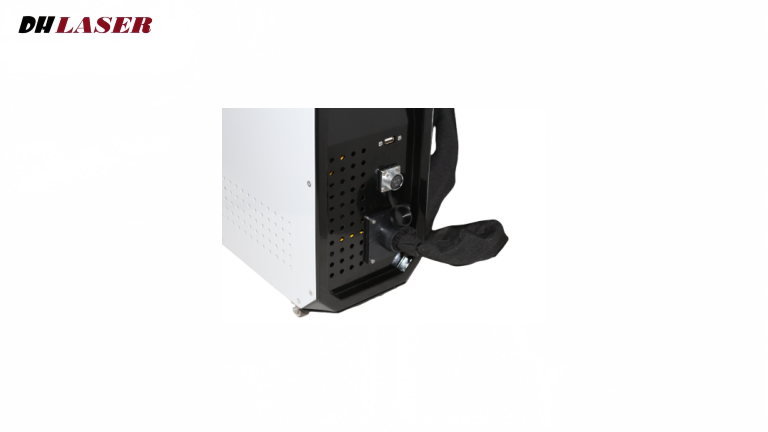

3、Machine interface
Made of all-aluminum alloy, aviation standard socket, good durability, stability and reliability.

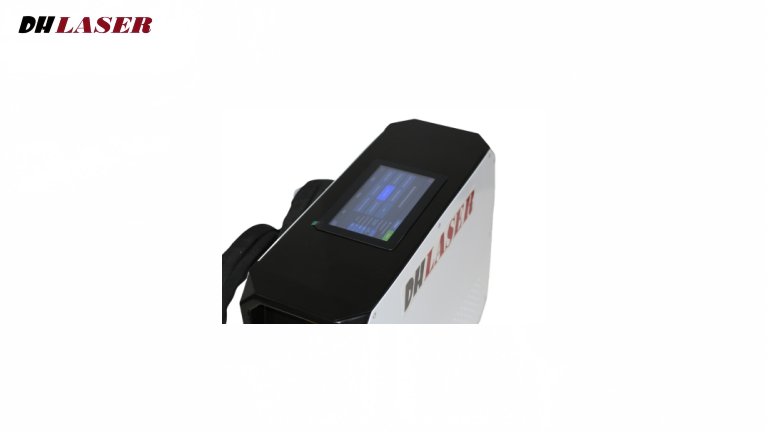

4、Humanization design
Put the control screen above the equipment to facilitate the operation and adjustment of machine parameters, which is more in line with customer applications.

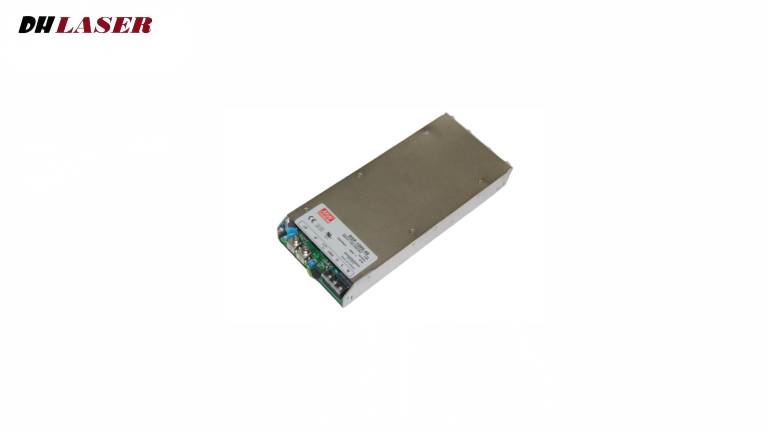

5、Switching power supply
Choose a switch regulated power supply with stable and reliable performance and long service life, which is well-known in China and suitable for 110--220V voltage.

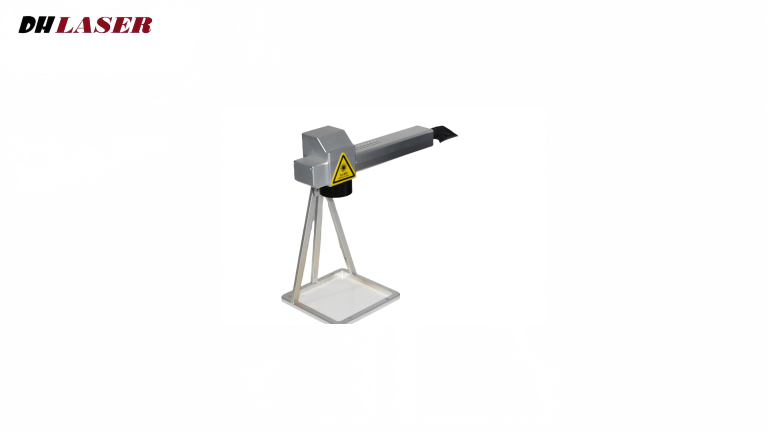

6、Cleaning head
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
