DH LASER is a professional factory manufacturer with 16 years of research and development, production, sales and service of laser equipment. The company is committed to the market application of new laser welding machines, laser cleaning machines and laser marking machines, and provides a complete set of laser application solutions for customers all over the world.

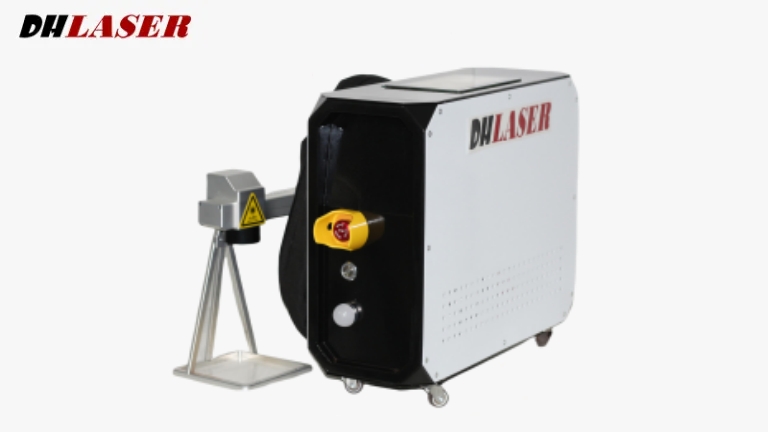

The pulse laser cleaning machine mainly consists of MOPA cleaning laser, control board, control system, pulse cleaning double pendulum cleaning head, cleaning field mirror, switching power supply and casing.
Pulse laser cleaning machines and continuous laser cleaning machines are both used for the removal of contaminants and coatings from surfaces using laser technology. However, there are differences between the two types of machines.pulse laser cleaning machines operate by delivering short, intense pulses of laser energy to the surface being cleaned. These pulses vaporize and remove the contaminants or coatings from the surface. Pulse laser cleaning is effective for removing tough contaminants and coatings, such as rust or paint. It is also less likely to damage the underlying material due to the short duration of the laser pulses.
Number | Name | Technical parameter |
1 | Machine model | DH-C200w |
2 | Output power | 200W |
3 | Laser Source brand | JPT/GZ |
| 4 | Maximum pulse energy | 5MJ |
5 | Laser wave length | 1080nm |
6 | Fiber optical length | 5M |
7 | Capacity control | 1--100% |
8 | Laser cleaning frequency | 1--3000KHZ |
| 9 | Pulse width | 13--500ns |
10 | Cleaning width | 1--100mm |
11 | Cleaning distance | F=200mm |
12 | Working voltage | AC220V 50/60HZ |
13 | Attaching plug | European, American, and English standards (customizable) |
14 | Language | China, Britain, South Korea and Russia (customizable) |
15 | Continue working time | 16hours |
16 | Working temperature | -10---40°C |
| 17 | Power Consumptio | ≤ 1KW |
| 18 | Cooling-down method | Air |
19 | Net weight | 20KG |
20 | Package size and weight | 490*210*480mm 38KG |
Product Features
1. The machine shell is made of metal sheet metal by laser cutting, welding and polishing, which is suitable for a variety of harsh working environments and has a beautiful and durable appearance.
2, the whole body metal paint, flat bright surface, bright color, high temperature resistance, corrosion resistance, impact resistance and rubbing resistance, waterproof and oil-proof.
3, metal key start switch and metal power interface, long service life, sensitive response, good contact conductivity, using some harsh working environment.
4. The optical fiber protective sleeve is made of confidential fiber, which is fireproof, waterproof and corrosion-resistant, thus effectively protecting the optical fiber from long-term use in various harsh environments.
5. The laser is made of JPT, a well-known brand in China, with uniform optical mode and stable light output energy. It is designed with flat top light, high energy density of 5MJ and low power consumption for air cooling.
6. The control system adopts high-sensitivity capacitive touch screen, which has fast response speed, 9 kinds of cleaning modes, such as straight line, circle, petal, solid circle filling, horizontal and vertical scanning, etc., and 20 national languages. The interface operation is simple and easy to adjust, and the laser power, frequency, pulse width, graphic size, cleaning speed and reaction time can be adjusted.
7. The weight of the cleaning head is 500g, and the double swing X/Y imported copper wire motor, the lens is made of silicon wafer high temperature Shi Ying material, which does not heat or deform, and the fixed bracket is distributed, which is more convenient for cleaning operation.

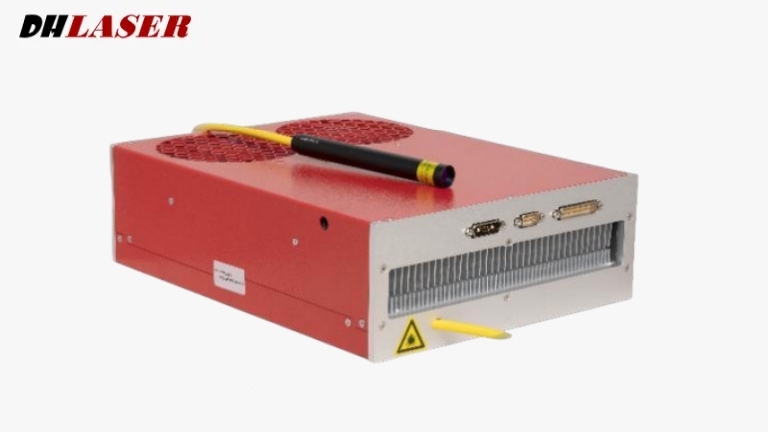

1、Pulse fiber laser source 200W
China famous brand laser adopts MOPA flat-topped light design, with stable output energy and uniform optical mode.

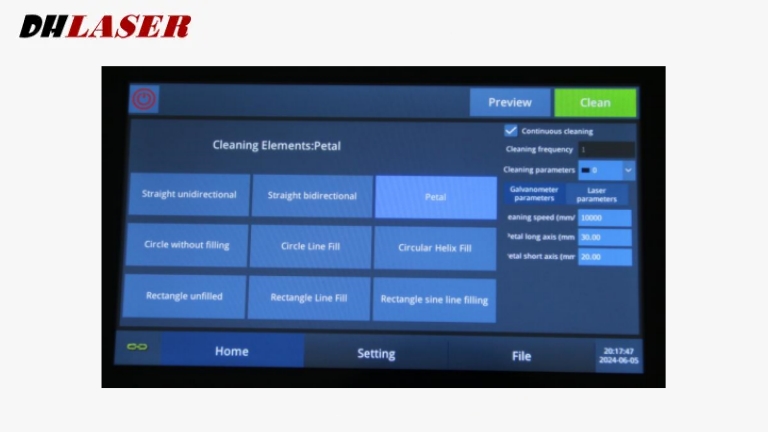

2、Control system
Using 7-inch capacitive touch screen and the principle of single chip microcomputer, the laser power, laser frequency, pulse width, cleaning width, filling angle and spacing, 9 cleaning modes and 20 languages can be adjusted.

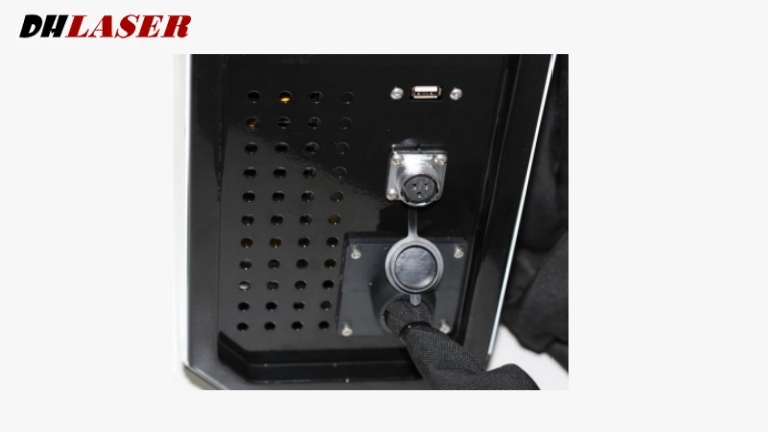

3、Emergency stop power
Adopt all-metal aluminum alloy aviation socket, which is durable and has stable contact performance.

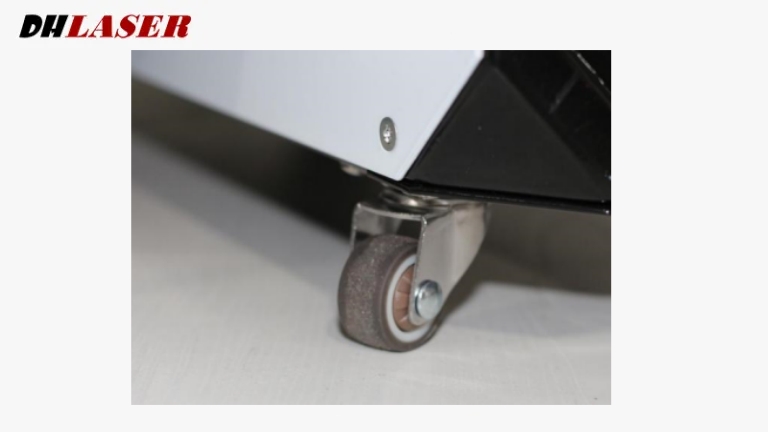

4、Silent seamless caster
The machine uses four universal casters, which is easy and convenient to push, and the silent design has no noise and drag marks.

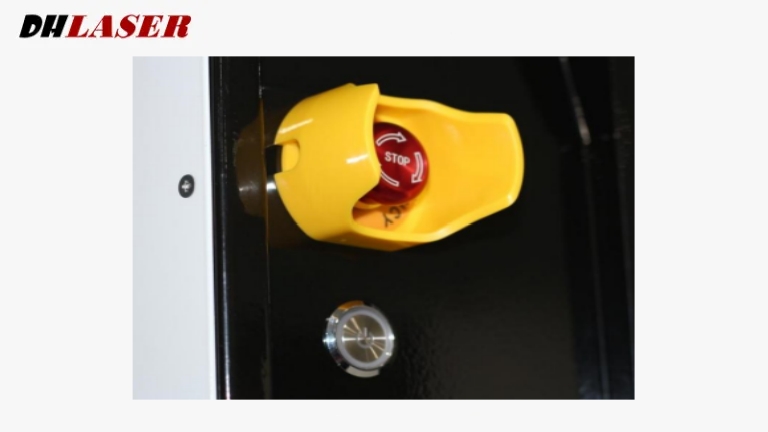

5、Start the button
All-metal button material, durable, long life, adapt to a variety of harsh environments, with power identification and LED light display

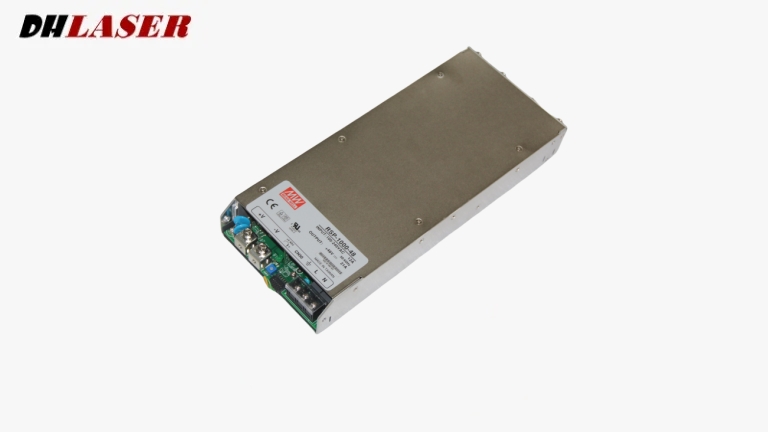

6、Switching power supply

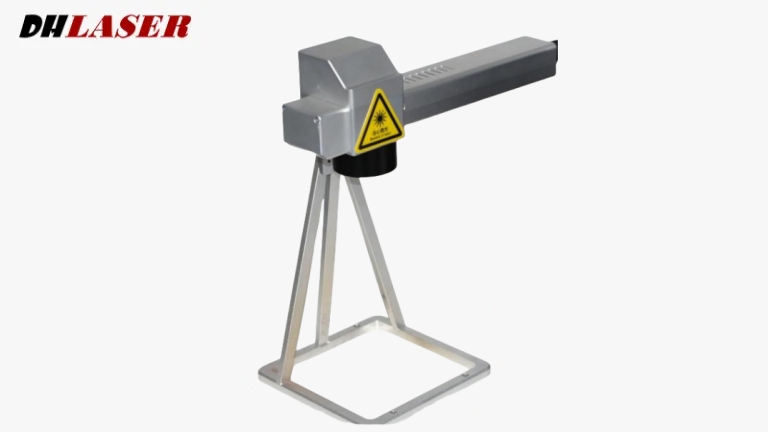

7、Hand-held cleaning head
All-metal aluminum alloy design, double pendulum imported all-copper motor, Shi Ying lens, fast response, small error, no noise, equipped with special positioning device, more convenient cleaning operation, can also be removed by itself
DH LASER is a leading manufacturer of customized 200w laser cleaning machines. Our advanced technology and high-quality products have made us a trusted supplier for businesses requiring precision cleaning solutions. With our expertise, we offer a wide range of customized options to meet specific cleaning needs.
Q: Can the 200w Laser Cleaning Machine be customized to fit different cleaning requirements?
A: Yes, our 200w Laser Cleaning Machine can be customized to fit different cleaning requirements. We understand that every cleaning task may come with unique challenges, and our team can work with you to customize the machine to meet your specific needs.
Welcome to DH LASER is a laser cleaning machine manufacturer. With a dedication to innovation and quality, we specialize in providing cutting-edge laser cleaning solutions for a wide range of industries.
At DH LASER, we understand the need for precision and efficiency when it comes to cleaning delicate surfaces. That's why our team of experts is committed to delivering tailor-made laser cleaning machines that meet the unique needs of our clients. Whether you're in the automotive, aerospace, or manufacturing industry, our state-of-the-art 200w laser cleaning machines are designed to effectively remove rust, paint, oil, and other contaminants from various surfaces without causing damage.
What sets us apart from the competition is our focus on customization and customer satisfaction. We work closely with our clients to understand their specific requirements and provide personalized solutions that exceed expectations. Our team's expertise and dedication to excellence ensure that every laser cleaning machine we produce is of the highest quality, reliability, and performance.
At DH LASER, we strive to push the boundaries of innovation and offer unparalleled customer support. Our commitment to continuous improvement and customer satisfaction has made us the go-to choice for companies looking for reliable and efficient laser cleaning solutions.
Contact us today to learn more about how DH LASER can help meet your laser cleaning needs. Let us be your trusted partner in achieving cleaner, safer, and more efficient surfaces.
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
Feel free to contact us
Over the years, our products have been exported to the United States, Europe, Southeast Asia, the Middle East and other countries and regions
16 years laser industry application experience,focusing on the research and development and production of laser welding machine, laser cleaning machine, laser marking machine and laser cutting machine.
DH LASER is the leading manufacturer of customized 200w laser cleaning machines, designed to revolutionize industrial cleaning processes. With its advanced technology, this cutting-edge product eliminates the need for harmful chemicals and abrasive materials, making it environmentally friendly and cost-effective. Potential customers in industries such as automotive, aerospace, and manufacturing will benefit from this innovative solution as it provides a safe and efficient way to remove rust, paint, and contaminants from various surfaces without causing damage. Experience the power of DH LASER's laser cleaning machine and take your industrial cleaning to the next level.
